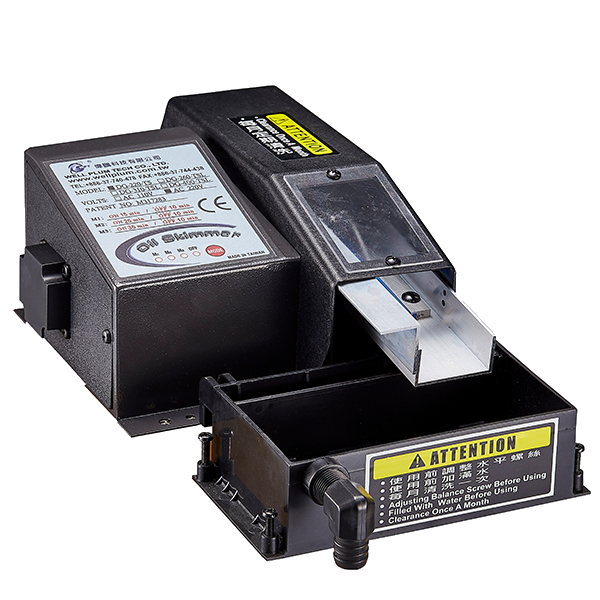

OIL SKIMMER

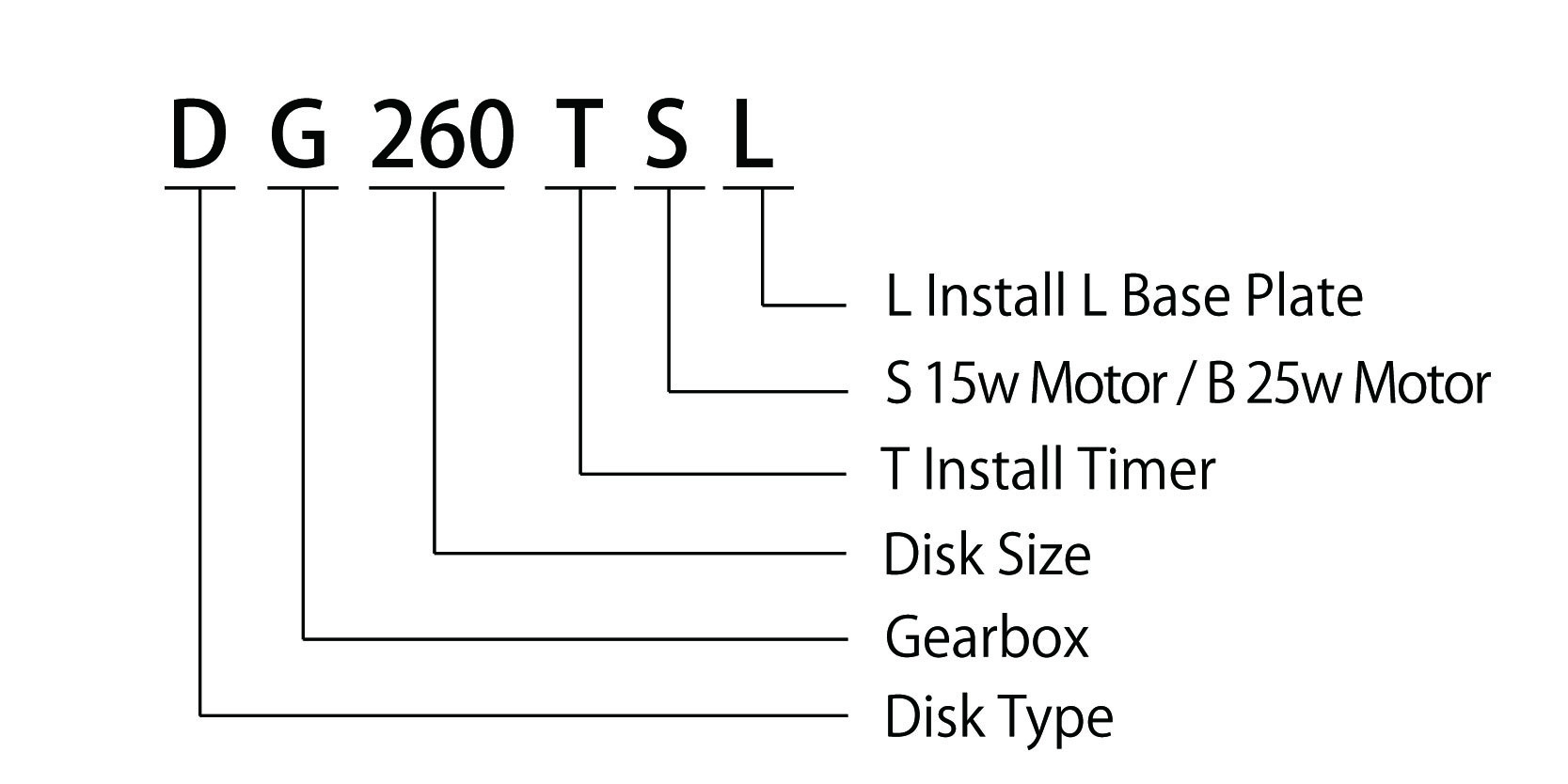

※The following figure shows the code principle of model
Product features：
◈ It is suitable for scraping off slick oil and separating oil and water in cutting fluid of various machines to prolong the service life of cutting water.
◈ Easy installation, DIY products.

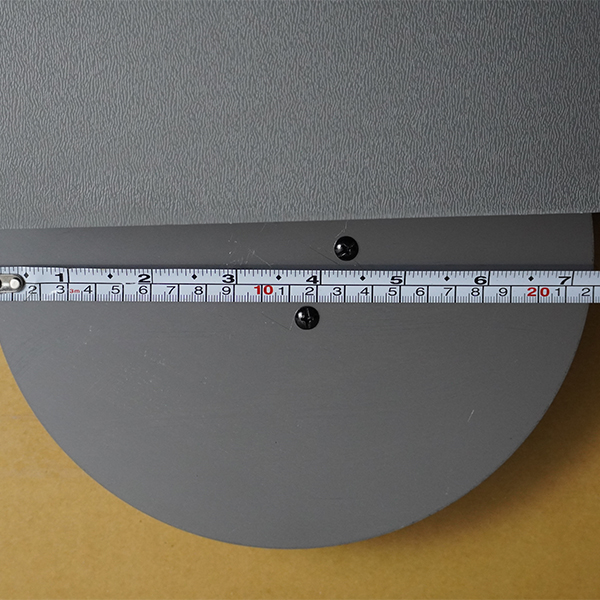

◈ The diameter of the disc is 2/3 deep into the patented design of the water tank, and the small disc can also achieve the effect of the large disc, reducing the space.
◈ Any machine can be easily installed.
Product specifications：
◈ Machine specification : 340*210*120 mm
◈ Eat water depth : 146 mm below the tank cover
◈ Voltage : AC 110V/50/60 HZ
AC 220V/50/60 HZ
◈ Power consumption : 13 ~ 15 W
◈ Oil removal efficiency : 10 liters/hour
Product description ：
油水分離機操作手冊 OIL SKIMMER Operation Manual
