OIL SKIMMER

DISK TYPE OIL SKIMMER D300BLS
DISK TYPE OIL SKIMMER D300BLS
DISK TYPE OIL SKIMMER D300BLS
DISK TYPE OIL SKIMMER D300BLS
DISK TYPE OIL SKIMMER D300BLS
DISK TYPE OIL SKIMMER D300BLS
DISK TYPE OIL SKIMMER -Separation box
DISK TYPE OIL SKIMMER-Wipers
DISK TYPE OIL SKIMMER D300BLS
DISK TYPE OIL SKIMMER D300BLS
DISK TYPE OIL SKIMMER D300BLS
DISK TYPE OIL SKIMMER D300BLS
DISK TYPE OIL SKIMMER D300BLS
DISK TYPE OIL SKIMMER D300BLS
DISK TYPE OIL SKIMMER -Separation box
DISK TYPE OIL SKIMMER-Wipers
DISK TYPE OIL SKIMMER D300BLS

SK00DK011

Product specifications
480*300*350 mm
Draught
120 mm below the water tank cover
Voltage
AC 110V/AC 220V/50/60 HZ
Power consumption
25 W
► Inquiry, purchase order, please follow the purchase process.
Purchase Process

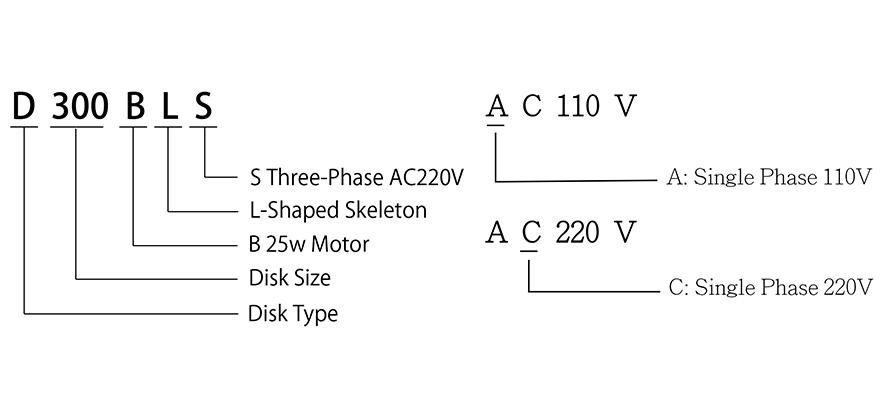

※下圖展示了模型的編碼原理



產品特色：

◈ 適用於刮除各種工具機切削液中的油污，並分離油水，延長切削液的使用壽命。 ◈
安裝簡便，DIY產品。 ◈
砂輪直徑300~500mm。 ◈
可輕鬆安裝於任何工具機。



產品規格：

◈ 工具機規格：480*300*350mm
◈ 進水深度：水箱蓋下方120mm
◈ 電壓：AC 110V/50/60Hz

AC 3 ø 220V/50/60HZ
◈ 耗電量：25 W
◈ 除油效率：12 公升/小時



產品說明：




油水分離機操作手冊 OIL SKIMMER 操作手冊

D300BLS 外部尺寸

銷售業績

撇油器箱尺寸
